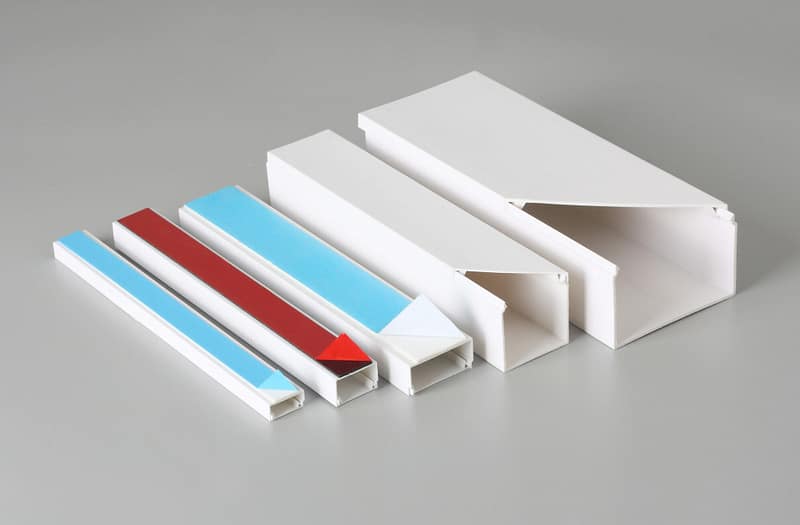

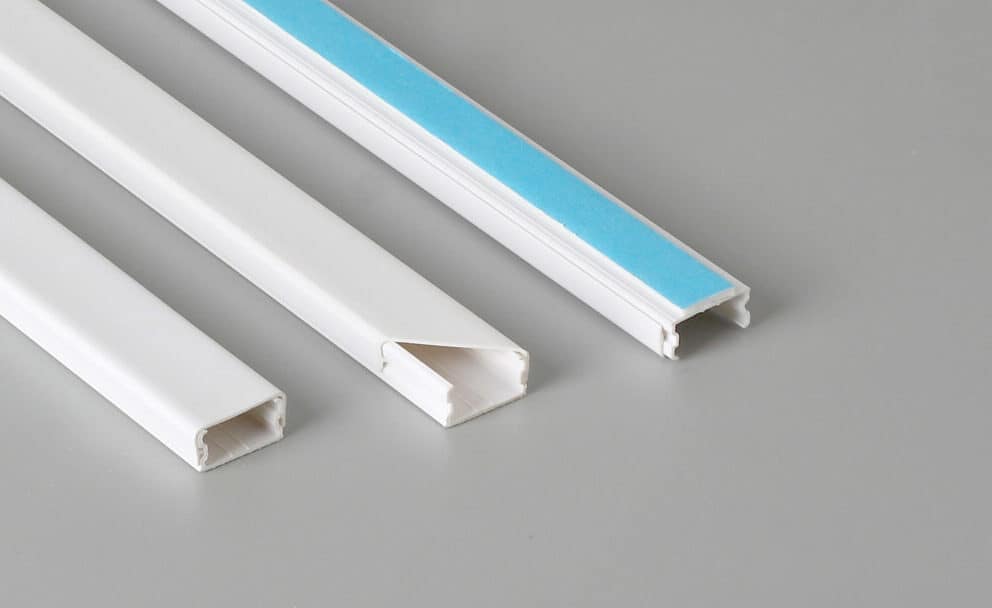

Special PVC Trunking
Manufactured from PVCu to meet the requirements of BS EN 50085, with horizontal or vertical mounting and easy assembly.
- 9 models
- 14×7 – 38×17 mm
- 4 colours
- Adhesive tape optional
Functional Special PVC Trunking
Unique structures and designs are utilized for our special PVC trunking to give them specific properties for various uses. Manufactured from PVCu to meet the requirements of BS EN 50085, our functional special PVC trunkings have horizontal or vertical mounting and easy assembly.
Budgie is your special PVC trunking manufacturer with our extensive OEM services, helping you achieve your branding goals while staying within your budget. You also receive professional recommendations from our consultants in terms of PVC trunking solutions for your target market.
Features
Easy Installation
Each of our special PVC trunking is easy to cut, has minimized seepage, and can be installed onto various surfaces.
Optimized Strength
Using high-grade materials provides our special PVC trunking with superior durability and service life.
Closed Design
By having a sealed design, the special PVC trunking stops dust or pests from affecting the cables.
High-Grade Insulation
Confirm the electrical insulation and operating temperature requirements for your application against the test documents for the selected model.
Specifications
| Model | Size-W*H (mm) | Thickness (mm) | Pack (pcs/bag) | Trunking Fittings |
|---|---|---|---|---|
| NCT-2010 | 20×10 | 0.5 /0.6/ 0.65/ 0.7/ 0.8 | 40 | ✓ |
| NCT-2516 | 25×16 | 1.12 | 25 | ✓ |
| NCT-3817 | 38×17 | 1.2 | 15 | |
| DCT-01 | 14×7 | 0.83 | 100 | |
| DCT-02 | 18×8 | 1.15 | 100 | |
| DCT-03 | 20×10 | 0.95 | 50 | |
| DCT-04 | 21×14 | 1.1 | 50 | |
| DCT-05 | 25×17 | 1.18 | 50 | |
| DCT-06 | 30×20 | 1.2 | 50 |
Notes
- Color: white, bluish white, dark grey, brown.
- Bottom fasten holes should be requested by order. Normal type is without fasten holes.
- Can with adhesive tape or without adhesive tape on bottom.
Secondary Fabrication for Your Choice
If you have a preferred thickness for your products or want to add punches or adhesive tapes, let us know and we can make the appropriate adjustments to fit your demands.
Certifications
Outperform Your Competitors With Budgie’s Cooperation
Extensive Selection
Budgie has a complete range of special PVC trunking solutions for any project.
Marketable Quality
From injection pressure to cooling time, our production ensures a flawless special PVC trunking product.
Strong Manufacturing Capabilities
The high-grade injection molding equipment and qualified staff allow for streamlined production.
Experienced QC Inspectors
The insightful auditors of our team prevent any flaws in our special PVC trunking.
Efficient Delivery
We have dependable logistic partners that can deliver your PVC trunking order safely.
Full Aftersales Support
Available anytime, our technical support team can troubleshoot any issues experienced with our product.
